Ferlux Fuji 70 turbocharged wood burning insert 8.2 kW

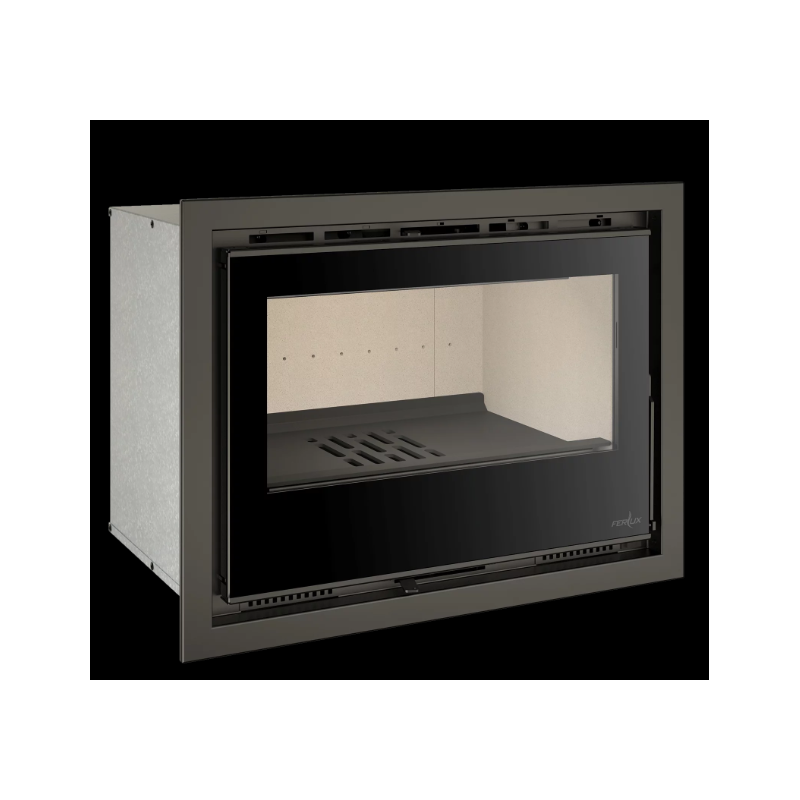

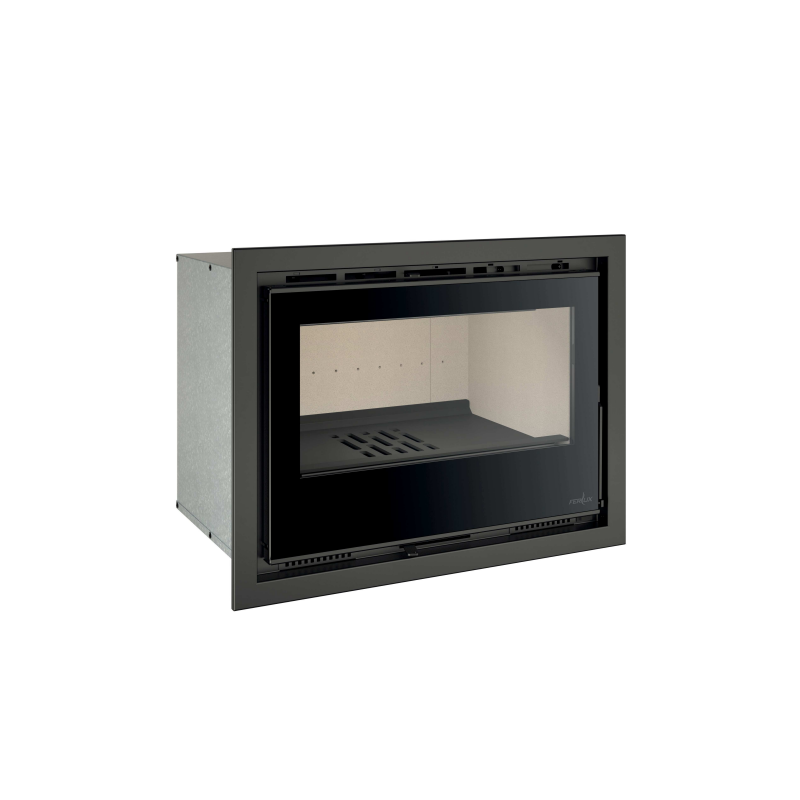

Ferlux Fuji 70 turbocharged 8.2 kW wood burning insert.
The Fuji 8.2kW Ferlux wood-burning fireplace insert with glass door fits perfectly into any interior and creates a warm and cozy atmosphere up to 230m3.
Yield: 78% EcoDesign.

Yield:78% EcoDesign 2022.
- Nominal heating capacity: 6.4kW – Maximum heating capacity: 8.2kW - Efficiency: 78%
- Recommended heating volume: 230m3
– Logs 33cm
- Glass door
- Combustion chamber Interior refractory vermiculite
- Smoke connection: 150mm on top
- Clean Glass System. An airflow removes particles stuck to the glass, providing a view of the fire.
- Turbine 220V Hot air outlet 2 x 120mm diameter
- Primary air inlet can be ducted from the back or bottom of the unit
- Dual combustion system
- Primary and secondary air control.

The Ferlux Fuji 8.2 kW Ferlux Wood-Burning Fireplace Insert with Glazed Front Fits perfectly into any interior and creates a warm and comfortable atmosphere up to 230m3.
Efficiency: 78% EcoDesign 2022 provides excellent performance while saving energy in your home.
Its panoramic and modern style fits perfectly into any interior and creates a warm and comfortable atmosphere.

It perfectly heats large rooms up to 230m3.
Yield: 78%
EcoDesign 2022
Ideal for heating a room up to 80m².
Rapid temperature rise, you won't have to wait long to warm up
Dual combustion improves the efficiency of the stove thanks to two air inlets that allow the wood to be burned better.
Allows a heat energy efficiency of 78% while reducing carbon monoxide emissions, pollutants in flue gas concentrations and fine particles.

The clean glass system prevents soot from appearing on the glass during combustion so you can spend less time cleaning your stove.
Suitable for logs up to 33 cm
The Fuji Ferlux Wood Insert is made of carbon steel with a vermiculite combustion chamber.
The Fuji Ferlux wood insert is equipped with the ECODESIGN 2022 feature, synonymous with high performance and respect for the environment.
The Fuji Ferlux Wood Fireplace achieves the thermal comfort that can be used in the main room by natural convection of the heated air thanks to the combustion of wood.
To control the combustion, duration and heat input, the Fuji Wood Insert has a regulator that acts on the airflow and in addition a second regulator that modifies the secondary airflow, with the clean glass system.

To control the combustion, duration and heat supply, the device has a handle that acts on the airflow for combustion and a second regulator that modifies the airflow of the glass that makes up the clean glass system.

Learn more:
Primary Air: It is located at the bottom of the device. Our equipment allows you to adjust this air intake, depending on whether you want more or less flame, reducing the consumption of logs to obtain a more efficient combustion.

Secondary Air: It sits on top of the teams.
It is a preheated air that is introduced into the combustion chamber that promotes the cleaning of the glass, reduces emissions into the environment and increases the performance of the equipment.

Clean Glass: At the inner part of the glass, an air curtain prevents the combustion fumes from coming into contact with the glass, allowing the flame to be seen for a long time and better combustion. We also help reduce emissions and fuel consumption.

Dual Combustion: It is done by injecting preheated air to a certain height, reacting with the unburned gases that are released from combustion.
This allows for higher performance, lower fuel consumption and reduced emissions into the environment.

Printed Glass: The devices that incorporate it have a more elegant and sophisticated design, ensuring that the door is not just a technical element, but also a decorative element, screen-printed crystal.

White Vermiculite: The white color allows for an attractive view of the flame. Appliances that incorporate it have the combustion chamber completely covered with this material which is resistant to high temperatures and prolonged contact with the flame.
Being a highly refractory material, it guarantees complete combustion, reducing emissions into the atmosphere thanks to the high temperatures that the combustion chamber reaches.

Turbine: In addition to the natural convection heating capacity of all our equipment, we must add the effect of the impulse turbines that some of them have.
Specially indicated if you need a hot air duct to improve comfort in adjoining rooms. 220v turbine.

Potentiometer:It allows the turbine air system integrated into the device to be activated or deactivated, providing the user with the desired amount of air to be adjusted.

Canalization: A system that allows hot air to be brought through ducts to other rooms by means of very quiet turbines.
This ensures greater comfort and lower fuel consumption.

Waterproof Equipment: Sealed equipment does not consume the air in the room in which it is installed.
As it does not saturate the atmosphere and does not reduce the amount of oxygen in this room, it allows for greater comfort.

Outdoor Air: Equipment that has an outside air inlet allows the chimney to work in a more efficient way, as cold air with a higher concentration of oxygen and nitrogen is used for combustion.
This reduces the consumption of firewood.

Technical Specifications :
EcoDesign 2022
Fuji Ferlux wood insert
Rated Power: 6.4 KW
Energy efficiency: 78%
Maximum power: 8.2 KW
Regulation: MANUAL
Dual combustion system
Easy primary air regulation
CO Emissions (13%): 0.10%
CO particles: 5.0mg/Nm3
OGC: 11mg/Nm3
NDx: 95.0mg/Nm3
Flue Gas Temperature: 246°C
Average Mintage: 10-14 Pa
Consumption: 2.08kg/h
Log size: 33cm
Color: BLACK
Carbon Steel
Refractory Brick - Vermiculite
Clean Glass System
Heating volume: 230m3

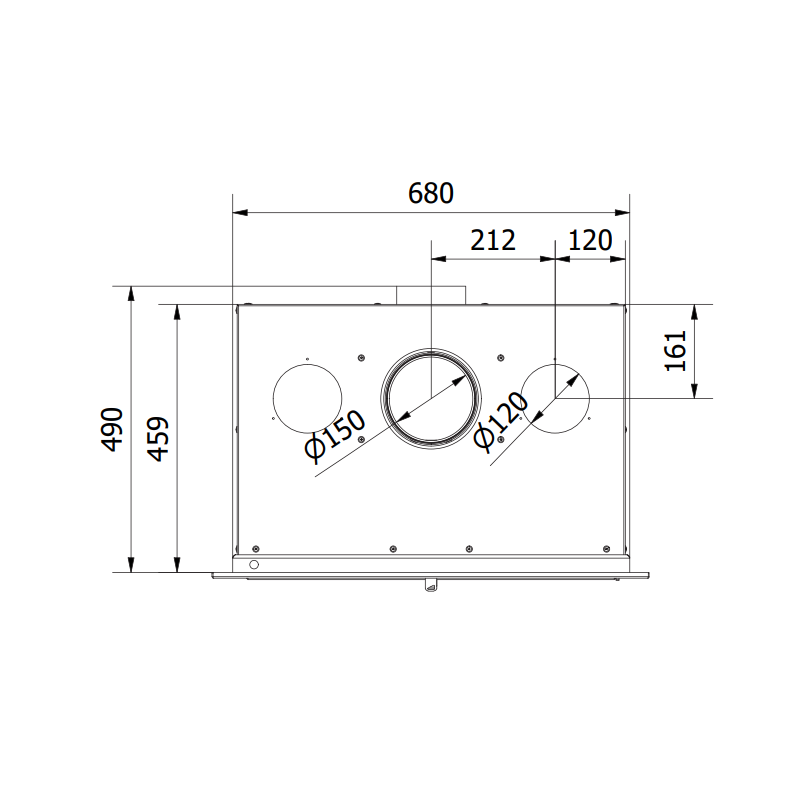

Height: 491mm
Width: 680mm
Depth: 490mm

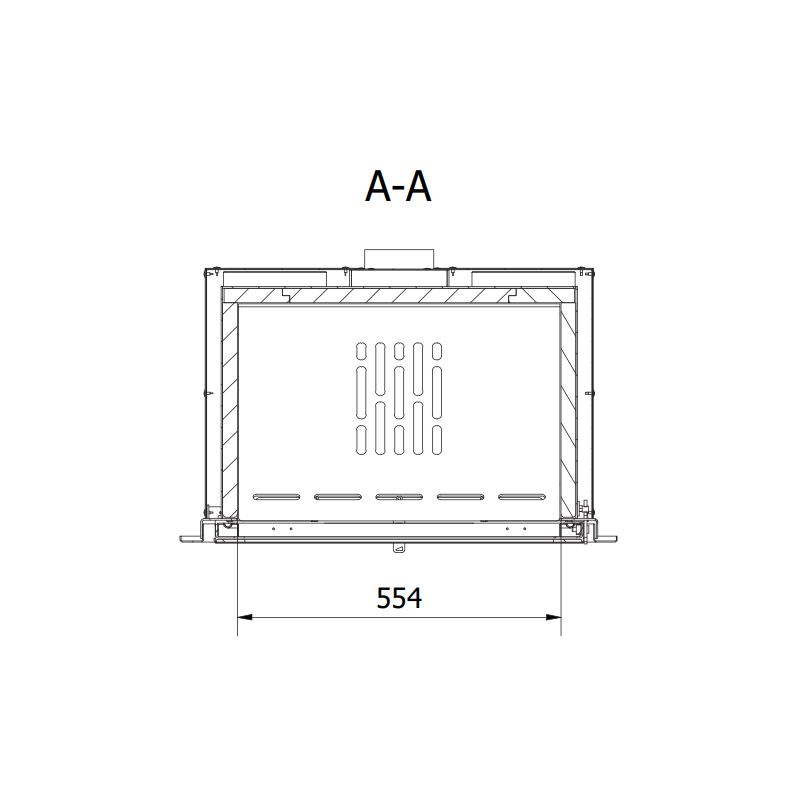

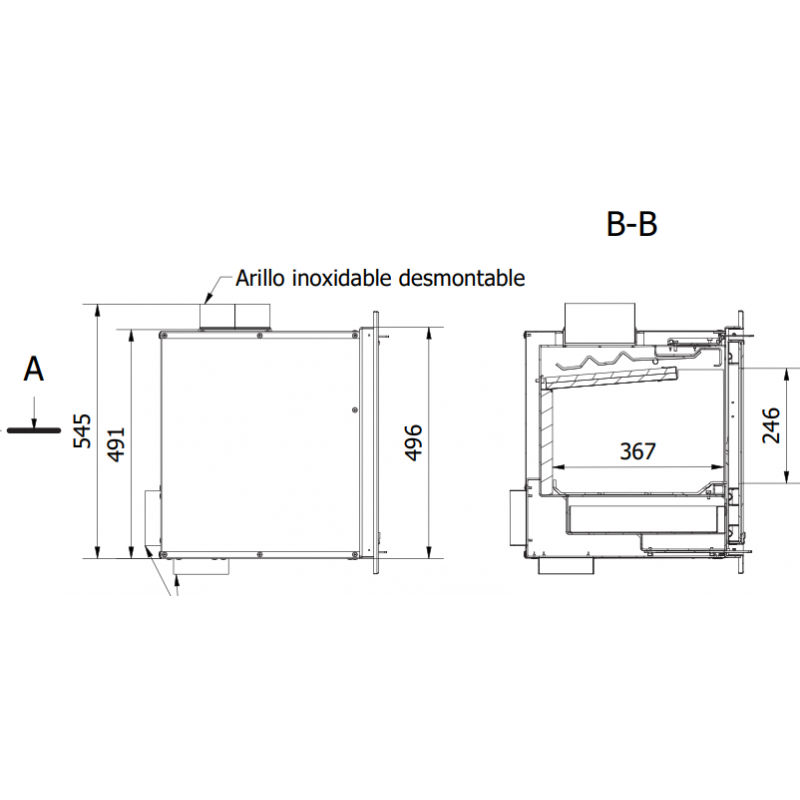

Interior depth: 554x367x246 mm
Front glass screen printed: 624.5x432.5x4mm
Removable grate ashtray
Easy primary air regulation
Loading: Front
Smoke outlet diameter: 150 mm
Hot air outlet 2 x 120mm diameter
220V Turbine
Primary air inlet can be ducted from the back or bottom of the unit
Flue gas connection: Top
Power supply 220-230v
Frequency 50-60Hz
Average Power Consumption: 38W.
Weight: 90 kg
Standards: CE, EN 13229
Green Flame / Ecodesign 2022 / Eligible for tax credit
Ferkux Warranty: 5 years

Brand: Ferlux
