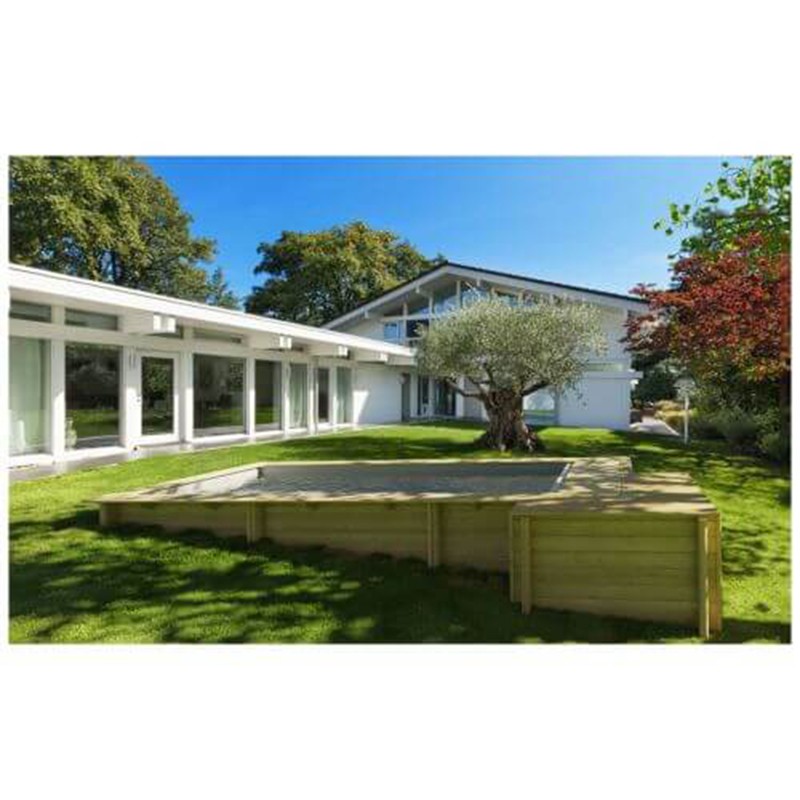

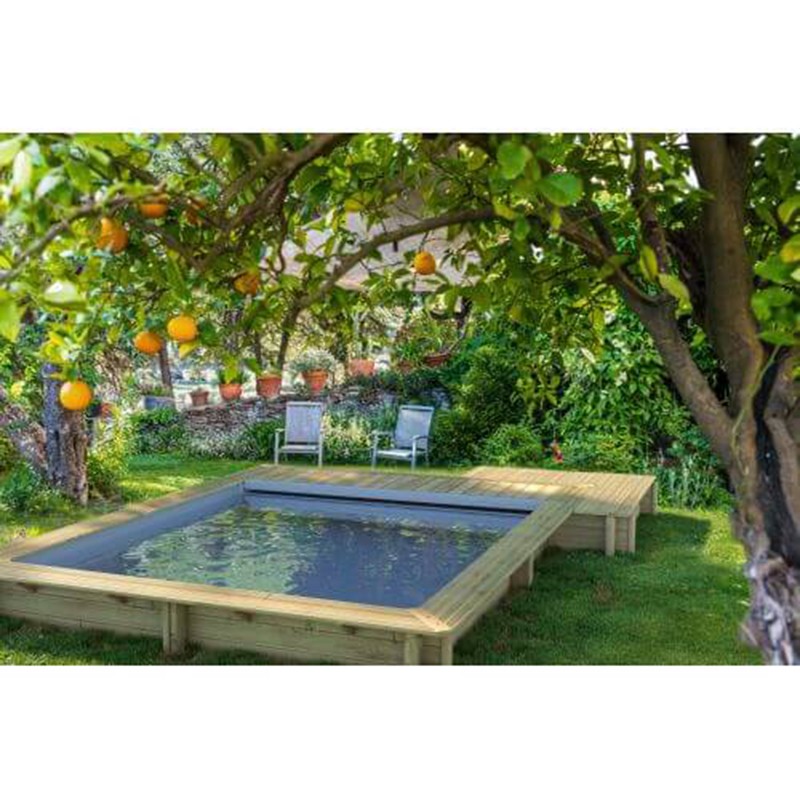

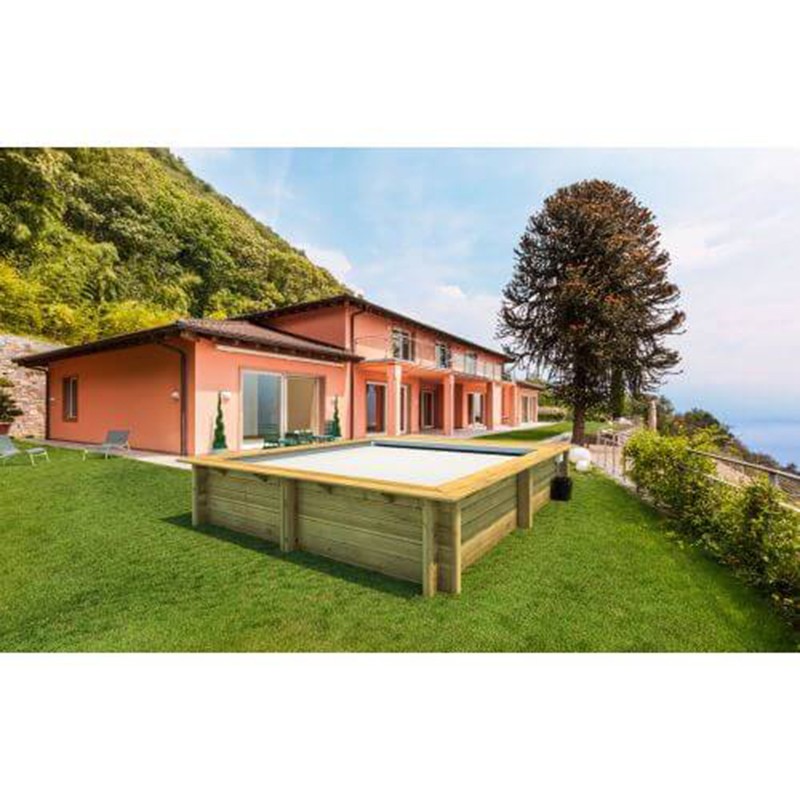

Urban pool Procopi wood 420 x 350 x H 133 automatic cover and trunk

Urban pool Procopi wood 420 x 350 x H 133 with automatic cover and trunk
Urban rectangular above ground pool-420 x 350 cm. Height: 133cm.

BWT myPOOL, the recognized expertise in above-ground wood pools
For many years, BWT has been offering on the market the wood pools of the brand BWT myPOOL whose lines and design are entirely designed by the Office of internal study to the brand. Each new pool is designed to meet the needs of consumers and the design of each pool in Kit meets a demanding specification to guarantee a reliable, durable and as complete product as possible. The new pools developed by the brand best meet the new needs, especially by offering small-sized wood-based pools, more in line with the sizes of today's garden. The basins are equipped with the latest equipment innovations and each pond is validated by a panel of consumers as well as in the internal laboratory that tests the basins under real conditions of use of a swimming pool.

Choosing an above ground pool wood BWT is benefiting from the expertise of a specialist manufacturer in the design of wood pool Kit, it is also enjoy the geographical proximity of factories and stocks as well as the availability of interlocutors French for all technical questions.

Urban pool: realize the impossible!
The urban pool range is a real revolution on the market: allow the owners of small gardens to enjoy a real bathing space, without constraint of size and equipped with the latest innovations. Particularly at ease in small spaces, the urban pool has cleverly thought-out dimensions to meet the constraints of the current, rather urban gardens. Available in two models, rectangular or square, you can choose to install it above ground or well semi-buried see buried at 100% for a bluing effect in your garden. Undeniable advantage of the swimming pool in urban Kit: each pond has a water body less than 10 sqm which allows you not to formulate a request for a building permit. The installation of the urban swimming pool therefore requires no formality and allows you not to be dependent on the administrative constraints of your city.

Exclusive advantage of the urban wood pool range: each pond comes with an automatic submerged cover, installed in an elegant and discreet way at the end of the pond and which assures you both safety (pool flap above ground according to the standard NF P 90-308) and water quality, clean and constantly tempered.

The urban range: a turnkey solution from the control to the installation.
Easily build your pool with clear instructions and an intuitive Assembly system.
At 2 people the General Assembly time is 5 days.
A pool and top-of-the-line amenities at a smart price
-Delivery directly to your home
-Possibility to involve installers for the liner and the flap

A durable and quality wood structure
BWT is committed to choosing, for each of its above-ground pool models, timber from forests whose management is sustainable and respectful of the environment. BWT thus has many certifications which are the culmination of rigorous and regular inspections by independent bodies. In particular, the wood has the European timber label PEFC.

The entire structure of the urban wood pool is made from pine wood from the forests of the North, beyond the 57th parallel. This choice is carried by the mechanical and aesthetic qualities of these woods which are then subjected to a class IV autoclave treatment. They thus have a validation by CTB-B + SP approval which guarantees the durability of the treatments applied on the wooden equipments.

In order to ensure the quality of the materials chosen and the treatment applied (after machining), all wooden parts are guaranteed ten years by the manufacturer. However, consider that a semi-buried or buried pool should be protected by a draining film for above-ground pool wood.

Technical and safety equipment
The swimming pools of the urban range are systematically delivered with an automatic submerged cover, perfectly integrated in the structure. By simply turning the key into the intended switch, the cover will unfold within a few seconds on the pelvis which is thus well protected. Automatic coverage with a dual function:
-Optimal safety for the protection of young children by making the water of the pond inaccessible once closed. This allows to be in complete compliance with the regulations and in particular the standard NF P 90-308
-Guaranteeing the quality of the water by avoiding that the leaves and outer detritus do not come to stain the water and thermally insulate the basin. The water is clean and temperate at all times.

The urban swimming pool is also delivered with: a complete electric box with programming clock for filtration, an LED projector connected to the electric box, a swimming elastic allowing you to swim in the basin without constraint of Size. Access to the basin is via an aluminium inner ladder and a wooden outer ladder. Finally, the parts to be sealed (skimmer and discharge) are in the colours of the liner which harmonizes the Interior of the pool.

Characteristics of the urban swimming pool 420 x 350 cm
General characteristics
Size
External dimensions: 419.2 "x 353"
External dimensions with trunk: 485.7 x 401.4 cm
Dimensions of the water body: 314 x 300 cm
Floor space required: 539 x 402 cm
Thickness of concrete slab to be predicted: 15 cm recommended
Height (incl. edge): 133 cm
Useful water height: 120 cm
Water volume: 13.32 M3
Swimming area: 9.42 m²

EQUIPMENT AND MATERIALS
Northern European forest pine (FSC) structure
Treated wood with autoclave treatment class IV
Thickness of planks: 45 mm
Double Margelle North FIR, 28 mm
Supplied counter-current swimming elastic
Electrical box for filtration, projector and automatic cover
Bottom felt
Liner 75/100th-light grey
1 skimmer & 1 discharge nozzle-light grey
4 structural metal reinforcements
4 steps wooden outdoor ladder
Internal ladder stainless steel 3 steps

TECHNICAL DATA
CARTRIDGE FILTRATION SYSTEM
-Integrated cartridge filtration system
-Filter flow: 4 m3/h
-Pipe diameter: 32 mm
-Filter cartridge supplied
-Programming clock via the supplied electrical box
SAND FILTRATION GROUP
-Light grey sand filtration unit
-Filter flow: 4m3/h or 6 m3/h-depending on the selected version
-6-way valve included
-Self-priming pump with pre-filter
-Sand load included

Technical specifications:
Shape: square
External dimensions: 419.2 "x 353"
External dimensions in inches: 164.96 "x 138.97"
External dimensions with trunk: 485.7 x 401.4 cm
Dimensions of water body: 314 x 300 cm
Height margellesd: 133 cm
Water volume (m3): 13.32 M3
Surface of the body of water (m²): 9.42 m²
Installation: buried (with trunk) or above ground
Administrative formalities: no
Warranty: 2 years

version
Automatic coverage: Yes
Cartridge filtration: Yes
Sand filtration: no
Wooden box: Yes
Heat pump: no

Integrated automatic cover, cartridge filtration and wooden trunk
In the previous Pack, a wooden chest is added to the pool. It is an indispensable element if you choose to install the pool in an underground or semi-buried way. With a thickness of 28 mm it is placed in one of the corners of the basin and has hinges and a safety lock to protect the access to the equipment.
